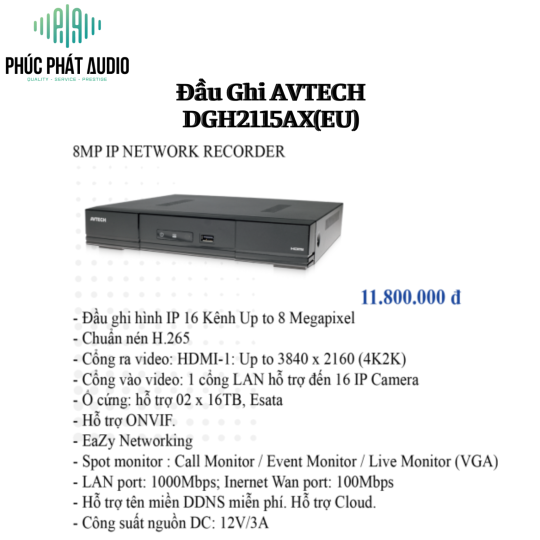

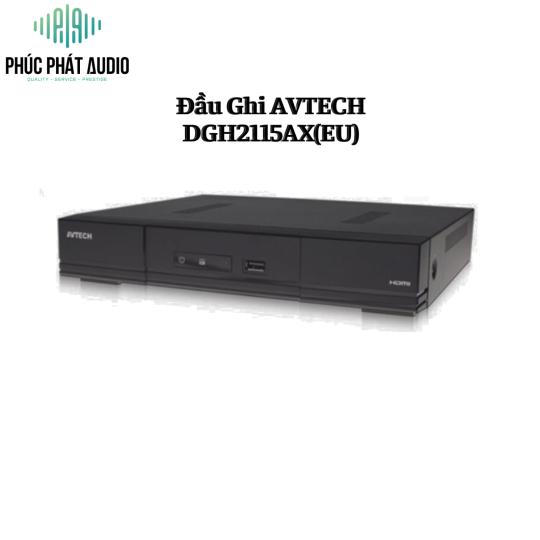

Thông Số Kỹ Thuật : Đầu Ghi AVTECH DGH2115AX(EU)
Ngõ vào Video One Cổng LAN (up to 9 IP cameras)
Ngõ ra Video HDMI Có (4K2K) VGA Có (720P / Spot Monitor Supported)
Composite Có (Spot Monitor Supported)
Độ phân giải ngõ ra Video 4K2K (3840 x 2160)
Audio 1 in (mic in) / 1 out
Alarm I/O 4 in / 1 out
RS490 Có
HDD Storage Either two 16TB SATA HDD installed in the recorder, or a disk array connected to the recorder via the eSATA interface
USB Port USB 2.0 x 2
eSATA Port Expandable with a SATA to eSATA cable
POE port 1000 Mbps x 1
Internet (WAN) port 10/100 Mbps x 2
Định dạng chuẩn nén Video H.265
Định dạng chuẩn nén Audio G711
Ngõ ra Video HDMI Có (4K2K) VGA Có (720P / Spot Monitor Supported)
Composite Có (Spot Monitor Supported)
Độ phân giải ngõ ra Video 4K2K (3840 x 2160)
Audio 1 in (mic in) / 1 out
Alarm I/O 4 in / 1 out
RS490 Có
HDD Storage Either two 16TB SATA HDD installed in the recorder, or a disk array connected to the recorder via the eSATA interface
USB Port USB 2.0 x 2
eSATA Port Expandable with a SATA to eSATA cable
POE port 1000 Mbps x 1
Internet (WAN) port 10/100 Mbps x 2
Định dạng chuẩn nén Video H.265
Định dạng chuẩn nén Audio G711
Local / Remote Display Mode 16CH
Local / Remote Playback Mode 16CH
Local Single Channel Playback Có
Recording Mode Manual / Event / Alarm / Schedule
Record Streaming Dual
Recording Resolution 271 IPS @ 4K2K (3840 x 2160)
Recording Throughput 160Mbps
Pre-alarm Recording Có
Quick Search Time / Event
Thông báo sự kiện Push Video (16CH) / Push Status / Video Mail / Message Mail
Security Multiple user access levels with password
Local / Remote Playback Mode 16CH
Local Single Channel Playback Có
Recording Mode Manual / Event / Alarm / Schedule
Record Streaming Dual
Recording Resolution 271 IPS @ 4K2K (3840 x 2160)
Recording Throughput 160Mbps
Pre-alarm Recording Có
Quick Search Time / Event
Thông báo sự kiện Push Video (16CH) / Push Status / Video Mail / Message Mail
Security Multiple user access levels with password
Multicast Có
Seamless Recording Có
EaZy Networking Có
Spot Monitor Setup Call Monitor / Event Monitor / Live Monitor (VGA or Composite)
Alarm Scenario Setup Có
Alarm Pop-up & Preview Có
Free DDNS Service Có
Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4, UPnP, DNS, UDP, IGMP
ONVIF Compatible Có
Max. Online User 40
Remote Access Web browser Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) and Google Chrome & Mozilla Firefox on MAC PC program 32CH CMS software for Windows OS Mobile app EagleECó on iOS & Android mobile devices
Seamless Recording Có
EaZy Networking Có
Spot Monitor Setup Call Monitor / Event Monitor / Live Monitor (VGA or Composite)
Alarm Scenario Setup Có
Alarm Pop-up & Preview Có
Free DDNS Service Có
Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4, UPnP, DNS, UDP, IGMP
ONVIF Compatible Có
Max. Online User 40
Remote Access Web browser Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) and Google Chrome & Mozilla Firefox on MAC PC program 32CH CMS software for Windows OS Mobile app EagleECó on iOS & Android mobile devices
Công suất nguồn (±10%) DC12V / 3A
Nhiệt độ hoạt động 10℃ ~ 40℃ (50℉~104℉)
Độ ẩm hoạt động 10% ~ 85%
Dimensions (mm) 319.5 x 254.9 x 52
Khối lượng tịnh (kg) 2
Minimum PC Browsing Requirements ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10 and later versions ‧Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) Optional Peripherals USB Joystick (AVX102) / SATA to eSATA cable (PWSC07F120200) Certification CE / UL (Power Adapter)
Nhiệt độ hoạt động 10℃ ~ 40℃ (50℉~104℉)
Độ ẩm hoạt động 10% ~ 85%
Dimensions (mm) 319.5 x 254.9 x 52
Khối lượng tịnh (kg) 2
Minimum PC Browsing Requirements ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10 and later versions ‧Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) Optional Peripherals USB Joystick (AVX102) / SATA to eSATA cable (PWSC07F120200) Certification CE / UL (Power Adapter)
