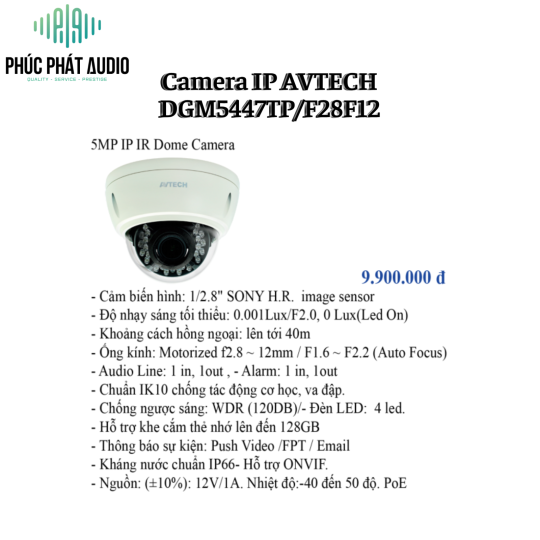

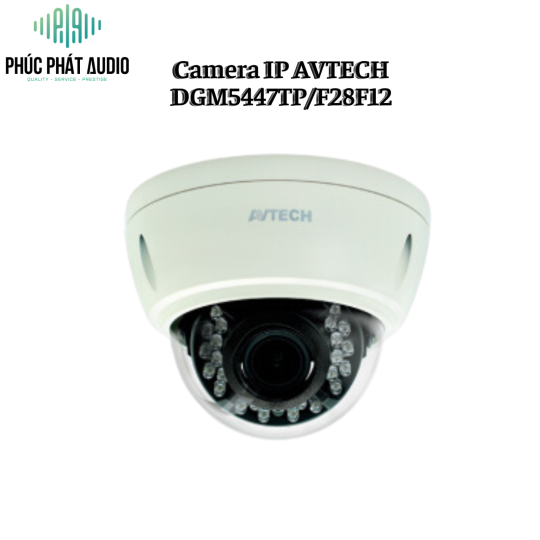

Thông Số Kỹ Thuật : Camera IP AVTECH DGM5447TPF28F12
Cảm biến hình ảnh 1/2.8" SONY CMOS Cảm biến hình ảnh
Độ phân giải tối đa 2592 x 1944 (5MP)
Lens Motorized f2.8 ~ 12mm / F1.6 ~ F2.2 (Auto Focus)
Viewing Angle Wide: 105.41° (Ngang) / 56.45° (Dọc) / 125.12° (Đường chéo) Tele: 34.5° (Ngang) / 19.5° (Dọc) / 39.5° (Đường chéo)
Độ nhạy sáng tối thiểu 0.001 Lux / F1.6(Wide)~F2.2(Tele), 0 Lux (IR LED ON)
Tốc độ màn trập AES
IR LED 24 units
Khoảng cách hồng ngoại Up to 25 meters
Day / Night Có
WDR Mode WDR (120dB) / DWDR
RTC NTP / Manual
Micro SD Card Slot Có (up to 128GB)
Chuẩn nén H.265 / H.264 / MJPEG
Độ phân giải video 2592 x 1944 / 2560 x 1440 / 2048 x 1536 / 1080P / 720P / D1 / VGA / 640 x 360 / CIF
Frame Rate 25 IPS @ 2592 x 1922, 2560 x 1440 & 2048 x 1536 30 IPS @ 1920 x 1080, 1280 x 720, 640 x 480 & 320 x 240
Video Profile High profile / Main profile / Baseline
Multiple Video Streaming 2 streams
S/N Ratio More than 52dB (AGC off)
Bitrate Control CBR / VBR
Image Mode Normal / Super Starlight / Forced Frame Rate
Image Enhancement WDR ( Level 0 ~ 255) / DWDR / BLC / HLC / 2D DNR / 3D DNR
Day / Night Switch Auto / Schedule / Manual
Forced Anti-flicker Có
Defog Có
White Balance AWB
Image Orientation Flip / Mirror
Privacy Mask 4 customized areas
Text Overlay Có
OSD Title Location / font size / text configurable; English & Chinese characters supported
Line in Có
Line out Có
Encoding G711 / G711A / AAC
Audio Adjustment Input & Output
Alarm in Có
Alarm out Có
Detection Mode Human (Day & Night) / Motion
Detection Schedule Có
Motion Detection Area 1x1, 2x2, 3x3, 3x4, 4x4, 8x8, 16x16, 22x18
Human Detection Alert Audio alert with customized mp3 audio file(s)
On-Board Storage Built-in memory card slot, supports microSD / SDHC / SDXC card up to 128GB
Overwrite Có
Maximum Recoding Time / per File 2, 5, 10, 20 & 30 minutes configurable
Recording Schedule Có
Cổng LAN RJ45 connector x 1
LAN Speed 10/100 Based-T Ethernet
Supported Protocols TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, HTML5, ONVIF
ONVIF Compatible Có (Profile S)
Number of Online 6
Security (1) Up to 10 user accounts with different access levels and passwords (2) IP address filtering (3) Digest authentication
Remote Access Internet Explorer 6 and above
Web Interface Language English, Korea, Traditional Chinese, Simplified Chinese, Turkish, Italian, German, Russian & Croatian
Nhiệt độ hoạt động -30℃ ~ 50℃
Độ ẩm hoạt động 30% ~ 90%
POE Có (IEEE 802.3af)
Công suất nguồn (±10%) PoE (IEEE 802.3af) / DC12V
Điện năng tiêu thụ (±10%) PoE: 6.5W; DC adapter: 5.5W.
Khối lượng tịnh 0.59
Certification CE / FCC
Casing IP67, IK10
Minimum Web Browsing Requirements ‧ Intel core i3 or higher, or equivalent AMD ‧ 2GB RAM ‧ AGP graphics card, Direct Draw, 32MB RAM ‧ Windows 10, Windows 8, Windows 7, DirectX 9.0 or later ‧ Internet Explorer 6 or above (Windows Edge not supported)
