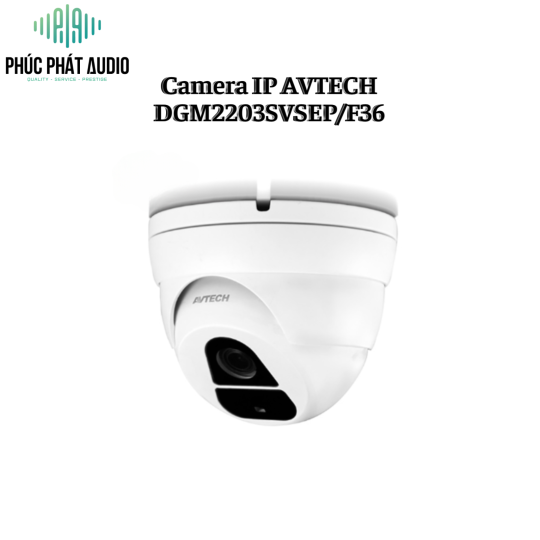

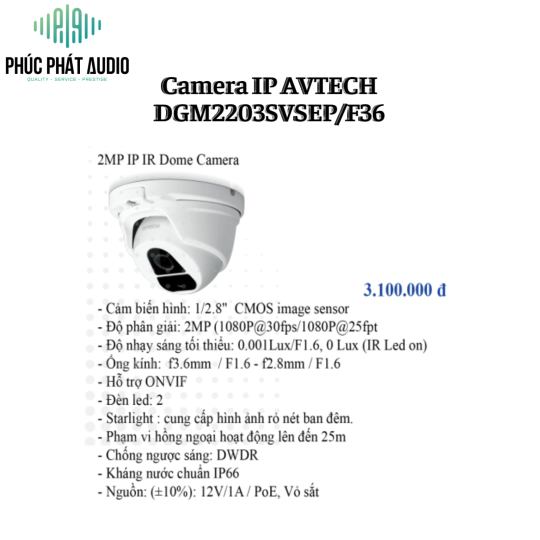

Thông Số Kỹ Thuật: Camera IP AVTECH DGM2203SVSEP/F36
Cổng LANCó
Cổng LANCó
LAN Speed10/100 Based-T Ethernet
Supported ProtocolsDDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4/IPv6, Bonjour, UPnP, DNS, UDP, IGMP, QoS, SNMP
ONVIF CompatibleCó (Profile S)
Number of Online Users10
Security(1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication
Remote Access(1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleECó on iOS & Android mobile devices
Chuẩn nén mạngH.265 / H.264 / MJPEGĐộ phân giải video1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate30fps
Multiple Video Streaming4 (H.265 / H.264 / MJPEG)
Cảm biến hình ảnh1/2.8" CMOS Cảm biến hình ảnh
Độ nhạy sáng tối thiểu0.001 Lux / F1.6, 0 Lux (IR LED ON)
Tốc độ màn trập1/2 to 1/10, 000 sec
S/N RatioMore than 48dB (AGC off)
Viewing Anglef3.6mm / F1.6 : 84° (Ngang) / 45° (Dọc) /99° (Đường chéo) f2.8mm / F1.6 :101°(Ngang) / 54° (Dọc) /120° (Đường chéo)
IR LED2 Units
Khoảng cách hồng ngoạiUp to 25 meters
IR ShiftCó
Smart Light ControlCó
White BalanceATW
AGCAuto
IRIS ModeAES
SharpnessCó
DWDRCó
POECó (IEEE 802.3af)
Chế độ xem dọcCó
Chuẩn chống nướcIP66
Nhiệt độ hoạt động-25℃ ~ 50℃
Độ ẩm hoạt động90 hoặc ít hơn độ ẩm tương đối
Công suất nguồn(±10%) 12V / 1A
EaZy NetworkingCó
Mobile SurveillanceiOS & Android mobile device
Motion DetectionFTP / Email / SMS
RTCCó
Digital Pan / Tilt / ZoomCó
Web Browsing Requirements‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) Optional Junction Box AVA456-WBKT / AVA456-WHKT Certification CE
Mức tiêu thụ(±10%) 140mA (IR LED OFF) / 220mA (IR LED ON)
Điện năng tiêu thụ(±10%) PoE & PoN: 3.7W; DC adapter: 3W
Khối lượng tịnh360
