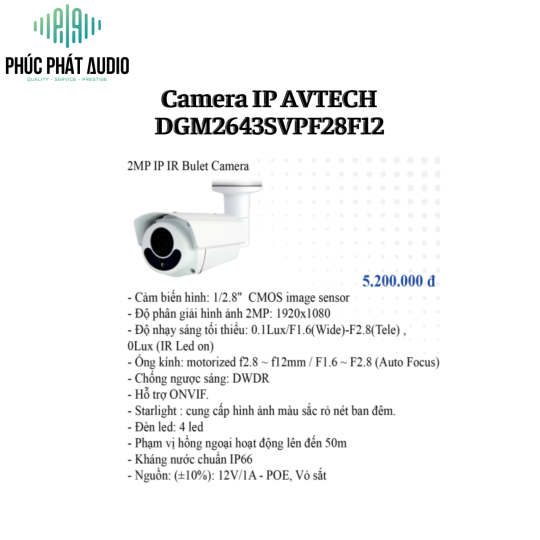

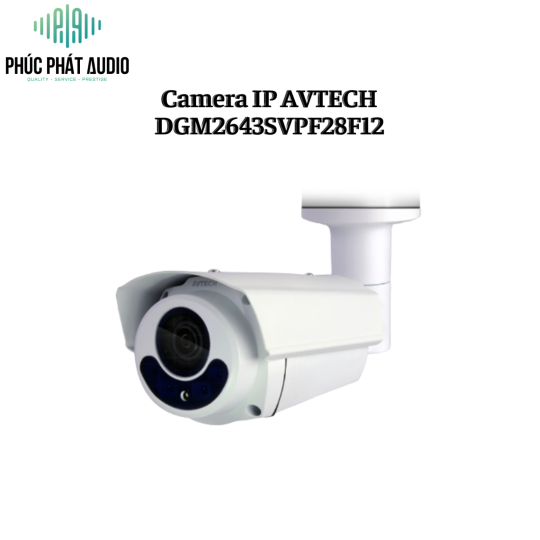

Thông Số Kỹ Thuật : Camera AVTECH DGM2643SVP/F28F12
Cổng LAN Có
LAN Speed 10/100 Based-T Ethernet
Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4/IPv6, Bonjour, UPnP, DNS, UDP, IGMP, QoS, SNMP
ONVIF Compatible Có (Profile S)
Number of Online Users 10
Security (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication
Remote Access (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleECó on iOS & Android mobile devices
Chuẩn nén mạng H.265 / H.264 / MJPEG
Độ phân giải video 1920 x 1080 / 1280 x 720 / 704 x 480 / 352 x 240
Frame Rate 30fps
Multiple Video Streaming 4 (H.265 / H.264 / MJPEG)
Cảm biến hình ảnh 1/2.8" CMOS Cảm biến hình ảnh
Độ nhạy sáng tối thiểu 0.001 Lux / F1.6 (Wide) ~ F2.8 (Tele), 0 Lux (IR LED ON)
Tốc độ màn trập 1/2 to 1/10, 000 sec
S/N Ratio More than 48dB (AGC off)
Lens motorized f2.8 ~ f12mm / F1.6 ~ F2.8 (Auto Focus)
Viewing Angle Wide: 87° (Ngang) / 50° (Dọc) / 93° (Đường chéo) Tele: 33° (Ngang) / 19° (Dọc) / 37° (Đường chéo)
IR LED 4 Units
Khoảng cách hồng ngoại Up to 50 meters
IR Shift Có
Smart Light Control Có
White Balance ATW
AGC Auto
IRIS Mode AES
Sharpness Có
DWDR Có
POE Có (IEEE 802.3af)
Chế độ xem dọc Có
Chuẩn chống nước IP66
Nhiệt độ hoạt động -25℃ ~ 50℃
Độ ẩm hoạt động 90% hoặc ít hơn độ ẩm tương đối
Công suất nguồn (±10%) 12V / 1A
EaZy Networking Có
Mobile Surveillance iOS & Android mobile devices
Motion Detection FTP / Email / SMS
RTC Có
Digital Pan / Tilt / Zoom Có
Web Browsing Requirements ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) Optional Junction Box AVA456-WBKT / AVA456-WHKT Certification CE
Mức tiêu thụ (±10%) 180mA (IR OFF) / 440mA (IR ON)
Điện năng tiêu thụ (±10%) PoE & PoN: 7.2W; DC adapter: 5.8W
Khối lượng tịnh 750
